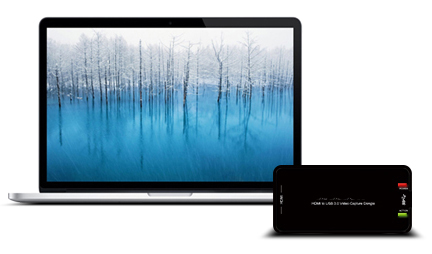

First external USB 3.0 HDMI and SDI Capture devices, in the world, which do not need drivers!

The brand new product series—USB 3.0 capture dongle, including two models: HDMI2USB3 (capture HDMI) and SDI2USB3 (capture SDI). These dongles are the first models, in the world, which do not need drivers; meanwhile they support Windows, Linux, MAC OS, with the capture resolution up to 1920*1200p/60. The new products are compact and easy to carry.
This new series adopts high-speed USB3.0 interface, compatible with USB2.0. The bandwidth can reach 00-350MB/s; it uses high-speed large volume buffer technology which can easily reach higher transmission speed and quality. Video, audio will be done by the capture dongle, which does not occupancy the CPU, and it largely reduces the workload of CPU.
incredible Compatibility
  • Compatible with various USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with expended USB 3.0 via PCIe Gen1.1 x1
  • Compatible with USB 2.0
  • Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)
  • Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime
  • Support software including Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and etc…
Excellent Video Processing
  • Support up to 1920x1200p60 (CVT-RB) Video Input
  • Video output support up to 1920x1200p60 in YUY2
  • Video output support up to 1920x1200p60 in RGB24
  • The process of video and audio is done by the dongle and will not occupy CPU.
Flexible and Friendly Features
  • Connect multiple dongles to one machine
  • Enable the up/down conversion of video resolution, frame rate and audio sampling rate
  • Support brightness, contrast, hue, saturation, and other screen adjustment functions
  • The HDMI video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output
  • The HDMI video capture meets UAC standard and 48KHz PCM stereo audio output

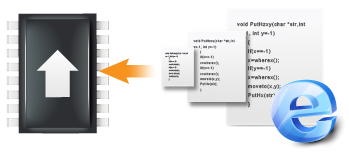

  • The video processing engine can be updated via firmware without changing the hardware.
  • Automatically detect and de-interlace signals
Easy to Use
  • No need to install drivers in Windows, Linux, and OS X, real plug and play.
  • Automatically determine the input video format and automatically convert it to the specified output size and frame rate?
  • Automatically determine the input audio formats and automatically convert it to 48 KHz PCM stereo audio.
Reliable and Stable
  • 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied.
  • Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)
Product Features
  • Capture single HD HDMI video signals.
  • Input and Output video signals up to 1080p/60 Hz.
  • Compatible with UVC video capture and YUV422 video output
  • UAC compatible with HDMI audio capture and  48KHz PCM audio output.
  • PnP no need to install drivers.
  • Compatible with Windows, Linux, OS X operating system.
  • Size : 84.25×42.8×12.6 (L / W / H, mm).
Advanced Features
  • USB3.0, 300-350MB/s transfer bandwidth, also compatible with USB2.0.
  • Video, audio processing via capture unit, does not load CPU
  • Automatically determines the input video format and automatically sets the output size , frame rate.
  • Automatically determine the input audio formats, and automatically converts to 48KHz PCM audio.
  • Adjustments for brightness, contrast, hue, saturation, and other screen adjustment.
  • Multiple capture dongles can be used on one PC
  • Firmware can be upgraded.
