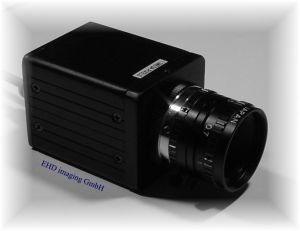

SMX-M95C, 5.0 Megapixel CMOS-Kamera USB2.0

SMX-M95C, 5.0 Megapixel color CMOS-Kamera mit USB2.0 Interface von EHD imaging GmbH.


Die neue CMOS Kamera ermöglicht es, Bilder mit einer Auflösung von 2592 X 1944 Pixel (5 Megapixel)  mit 8 Bilder/s darzustellen. Das 1/2“ Format des Sensors und der C-Mount Anschluß bei einer Größe der Kamera von 54 x 54 x 33 mm ermöglicht Anwendungen  in Forschung und Wissenschaft sowie in der Industrie.

Mehr lesen

4.2 Megapixel CMOS Camera with High-Speed Snapshot Trigger Shutter

SI-4000F MegaCamera™ 4.2 Million Pixel Progressive Scan Digital CameraLink Camera


The SI-4000F MegaCamera™ is an all-digital CMOS camera that delivers 4.2 Million pixel of resolution and is capable of running at up to 30 frames/se at its full 2048×2048 resolution and over 1500 frames per second at 320×240 resolution. Its 12µm square, 6-Transistor pixel architecture enables full frame stop-action snapshot shutters in a sequential exposure then readout mode or overlapping snapshot shutter with readout for continuous video modes. With a fill-factor of 60% yields a QE greater than 60% between 500 and 700 nm with a dynamic range of 2000:1 (66dB). The 24.6×24.6mm imaging area can be covered using F-Mount optics.

Mehr lesen
