VC100XUSB All-in-One HD/SD Input

The VC100XUSB-PRO can capture various kinds of SD and HD video signals, including 3G/HD/SD SDI. You can choose to connect to SDI device, HD digital devices for DVI, HDMI outputs or analog HD VGA or YPbPr and etc….

Kategorie:

Beschreibung

VC100XUSB All-in-One HD/SD Input

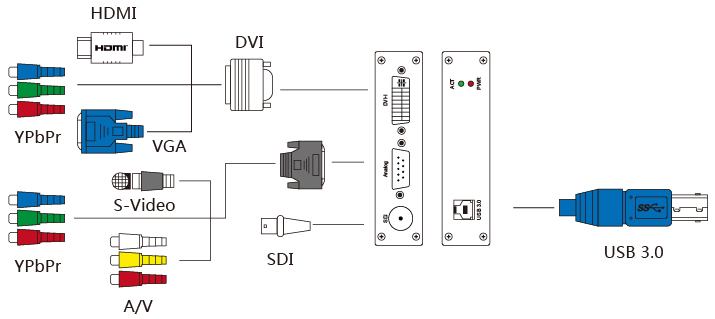

The VC100XUSB-PRO can capture various kinds of SD and HD video signals, including 3G/HD/SD SDI. You can choose to connect to SDI device, HD digital devices for DVI, HDMI outputs or analog HD VGA or YPbPr and etc. You can also connect to SD devices to connect S-video, CVBS and so on. There won’t be any limitation or worries regarding various signal inputs.

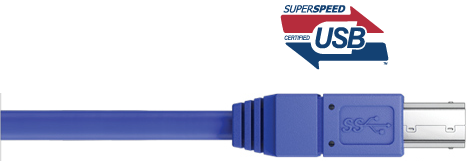

USB3.0 Interface enables higher performance
VC100XUSB-PRO adopts USB 3.0 interface, which can realize high-speed transmission. The device gets power from the PC directly and has no need of extra power adapter, which enables it to be carried easily. You can capture high-quality non-compressed 1080 HD video by this mobile capture device. Compared to PCI-Express x1 GEN 1.1 interface, the Intel USB 3.0 chip enables a nearly 50% faster data transmission at 1080p60. The VC100XUSB-PRO is compatible with USB 2.0 or you can get an extended USB 3.0 by a PCI Express card.
Professional Video Processing
The VC100XUSB-PRO can randomly scale or clip the input high-quality images, or switch its color space, adjust the Gamma and transmit the DMA to meet your individual requirements. It can effectively remove the black edges, manually adjust the valid image areas; automatically detect the interlaced video source and de-interlace it, and remove the image aliasing to help you achieve the best performance.
High-quality Video Experience
The VC100XUSB-PRO can capture and display original uncompressed HD or SD video with more realistic color rendition. It adopts large volume image buffer technology which effectively avoids the video tearing. The high sampling rate and high sampling accuracy assure images with high sharpness, rich details, and less color edges. The audio capture supports random ASRC, Downmix and Mixer, which will bring high-quality experience to users.
Flexible Multi-channel Capture
It has the feature of SimuStream, and multiple applications can simultaneously run and capture while the frame rate stays unchanged. It is allowed that different applications use different capture formats. One video source can be dealt into multiple formats or bit rates or resolutions. It will help reduce cost for users’ whole solution.
Compatibility with more software
It adopts standard development interface and is based on audio and video capture interface of DirectShow Filter and audio capture interface of DirectSound. It is based on IKsPropertySet expansion interface and it’s compatible with more software, like Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VideoLAN for Windows.
